Garmin Xero A1i Bow Sight

---

Laser Locate feature enables use of a compatible Garmin GPS device to know exactly where the target was located when the shot or range was taken

Auto-ranging digital bow sight automatically measures distance to the target and provides an LED pin for the shot

Dual-color LED pins allow you to clearly see your target, unobstructed by physical pins

Silent single-button trigger requires minimal movement; lets you range at rest or full draw up to 100 yards on game or up to 300 yards on reflective targets

---

Additional Specs/Details

Customizable for single-pin and multi-pin configurations or manual pin selection.

1 year of battery life with 2 lithium AAA batteries (not included).

LED pins: 2 colors (red and green)

Pin diameters = .007” and larger for red, .009” and larger for green

Operating range: -20C (-4F) to 60C (140F) with two AAA Lithium batteries.

Glass lens coating: target side is anti-reflective, archer side is 20% reflective

Light projection: no visible light is ever projected towards the target

Magnification: none

Pin brightness: ambient light sensor controlled or manual

Silent button trigger

Shot counter

Customizable fixed pins

Laser Locate feature

Multiple arrow profiles

Shot Dynamics

Compatible with Garmin GPS devices

Comes with protective bag, micro USB cable, mount, grip tape, and bow sight

---

Range, Sight and Shoot the Exact Pin

Know the range, and shoot the exact pin with minimal movement using Xero bow sights. They’re the first bow-mounted digital laser range finders and targeting display systems that measure the angle-compensated distance to your target and provide an LED pin for the shot — even on those “in-between” yardages. LED pins automatically adjust brightness to conditions and allow you to see your target, unobstructed by physical pins. A single-button trigger lets you range at rest or full draw to game¹ up to 100 yards away or to reflective targets up to 300 yards. Both Xero A1 and A1i are customizable for single-pin and multi-pin configurations or manual pin selection.

All-in-one Design

Xero bow sights mount directly to your bow, providing a highly accurate laser range finder that calculates the exact LED pin to use for the shot. There’s no need to fumble with a separate range finder or guess which pin to use.

Multiple Arrow Profiles

Xero A1i allows you to save pin settings for various bow configurations. Save settings for various draw weights, arrow weights and tips. Easily change between fast arrows for 3-D and heavier arrows for hunting.

Shot Dynamics

The Xero A1i bow sight includes additional information that can help improve archer performance. View data such as bow level at release, bow impulse duration and more.

---

Laser Range Finder

No more guessing about yardages in between pins. Xero A1 and A1i bow sights instantly provide the precise angle-compensated distance to game up to 100 yards away or up to 300 yards on reflective targets, at rest or full draw.

---

Customizable Pins

You can customize your Xero bow sight for single-pin and multi-pin configurations, or if you have certain favorite yardages, you can specify manual pin selections. Easily toggle between fixed pin mode and single-pin mode..

---

Laser Locate Feature

Use Xero A1i along with companion Garmin GPS devices (sold separately) to track game or find arrows to show you exactly where the target was located when the shot or range was taken. That way, you can go directly to that specific spot to begin your search.

---

LED Pins

The beauty of using bright LED pins is that you can clearly see them over your target, unobstructed by physical pins. Xero A1 utilizes red LEDs while A1i gives you the option to use red or green LEDs.

---

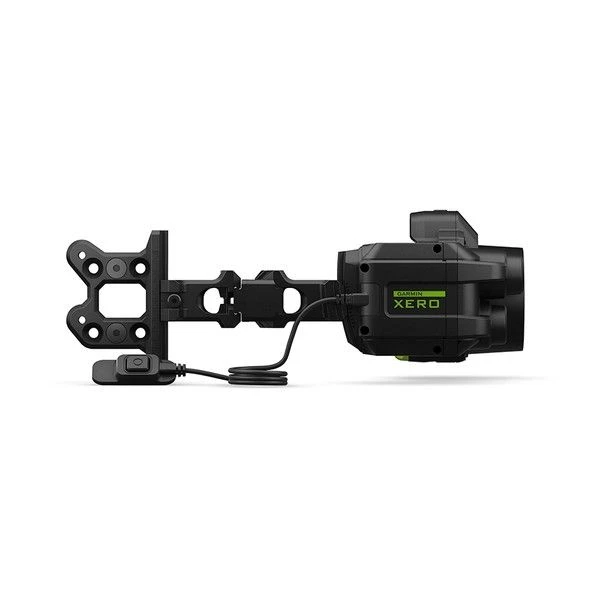

A1i Attached Appearance
